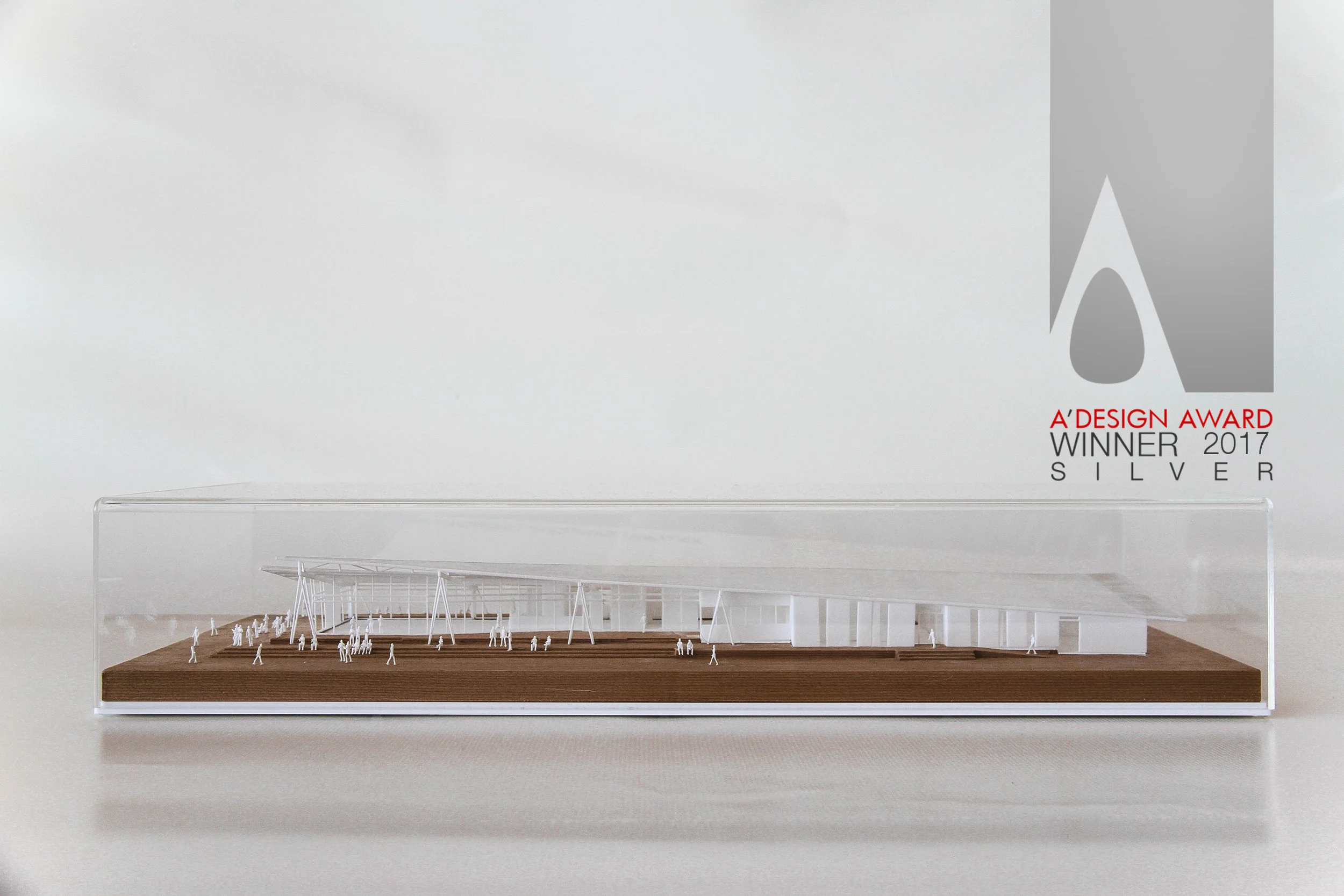

TKU AWARDED SILVER AT THE INTERNATIONAL A'DESIGN AWARDS
       
     
TKU AWARDED SILVER AT THE INTERNATIONAL A'DESIGN AWARDS

CAA are pleased to announce that our Three Kings United Clubhouse project has been awarded the Silver A’ Design Award in the category “Architecture, Building and Structure Design" by the grand jury panel of the A’ Design Award & Competition which consists of internationally influential press members, established designers, leading academics and prominent entrepreneurs.

The A’ Design Awards are the world’s most influential and largest design awards, presented each year in Italy. It is a great honour for us to receive this prestigious award and we would like to thank all of our friends and partners for their support and help along the way.

The Silver A' Design Award is a prestigious award given to the top 5% percentile and gives recognition to the excellence of design on the international stage.

You can visit the designmag.org to see all winners or check out our profile here

       
     
THREE KINGS UNITED NEW CLUB HOUSE BY COPELAND ASSOCIATES ARCHITECTS

Featured on Archdaily our Three Kings United project comes alive.

THREE KINGS UNITED FOOTBALL CLUB
       
     
THREE KINGS UNITED FOOTBALL CLUB

The new headquarters for Three Kings United Football Club is a single storey pavilion with a floating sculptural roof, set amidst the playing fields.  Inspired by the notion of a leaf floating over the Park and coming to rest, the roof has a dynamic diagonal fold that gains altitude towards the sun.

Status: Construction planned to commence later in 2017

Location: Auckland NZ

PERSPECTIVE VIEW OF THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
PERSPECTIVE VIEW OF THREE KINGS UNITED FOOTBALL CLUBHOUSE

The new Football Clubhouse to go in Keith Hay Park is a contemporary pavilion with a veranda roof structure that is set on a raised viewing platform lifted above the flood plain and overlooking the playing fields.


NORTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
NORTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE

The design evolved not only in response to economic and functional requirements, but also from the wish to express the ethos and aspirations of Three Kings United Football Club.

SOUTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
SOUTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE

In assembling the various functions of the building together, a roof form emerged with a dynamic diagonal fold that gains altitude towards the sun, expressive of a unified momentum.

TKU CLUB HOUSE FROM A DISTANCE // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
TKU CLUB HOUSE FROM A DISTANCE // THREE KINGS UNITED FOOTBALL CLUBHOUSE

The unique floating, sculptural roof stretches along the building and is realized by employing muscular fabricated steel sections that have digitally- defined progressive shifts along the buildings length. This canopy, with its folded planes is supported by a team of eleven steel triangulated supports that rise from the stepped plinth.

The structure is anchored at the southern end by the precast concrete panels enclosing the changing rooms, steadying the building and enabling the more playful and opportunistic spaces towards the north to open up - between the sticks of the steel frame and onto the viewing terraces that surround all sides of the main clubroom.

STRUCTURAL STEEL SKELETON // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
STRUCTURAL STEEL SKELETON // THREE KINGS UNITED FOOTBALL CLUBHOUSE

A modular steel portal frame with a regular bay-by-bay geometric shift (to create the diagonal geometry of the roof) is proposed. Vertical supports on the eastern elevation are bipods and on the higher western elevation are quadropods. All steelwork will be protected against corrosion by a long-warranty marine paint system.


In assembling the various functions of the building together on plan, a roof form emerged with a dynamic diagonal fold that gains altitude towards the sun, expressive of a unified momentum that by the way is also the very key ingredient of a successful eleven-man squad.

3D PRINTED + CNC ROUTED TKU PHYSICAL MODEL // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
3D PRINTED + CNC ROUTED TKU PHYSICAL MODEL // THREE KINGS UNITED FOOTBALL CLUBHOUSE

Designed digitally and fabricated physically through 3D printing and CnC routed wood.

Watch the construction and process here

TECHNICAL PLAN // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
TECHNICAL PLAN // THREE KINGS UNITED FOOTBALL CLUBHOUSE

Layout and spacial arrangement of the clubhouse vision.

EAST ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
EAST ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
WEST ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
WEST ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
NORTH+SOUTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
NORTH+SOUTH ELEVATION // THREE KINGS UNITED FOOTBALL CLUBHOUSE
SECTION 1 // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
SECTION 1 // THREE KINGS UNITED FOOTBALL CLUBHOUSE
SECTION 2 // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
SECTION 2 // THREE KINGS UNITED FOOTBALL CLUBHOUSE
Article on Archdaily // THREE KINGS UNITED FOOTBALL CLUBHOUSE
       
     
Article on Archdaily // THREE KINGS UNITED FOOTBALL CLUBHOUSE

A beautiful feature of THREE KINGS UNITED FOOTBALL CLUBHOUSE on Archdaily.

Click here to see Featured article.

THREE KINGS UNITED was also featured on Compititionline.com
